Specifications

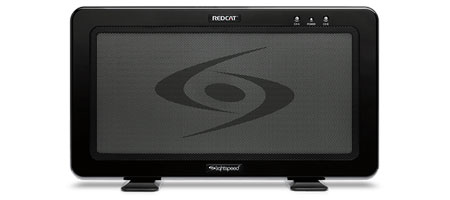

Redcat


Redcat
  • Standard Carrier Frequencies (IR) 2.06/2.54 MHz
  • Power Output: 20W
  • Total Harmonic Distortion (THD): <1% @ 1KHz
  • Signal-to-Noise Ration: >77 db
  • Amplifier Frequency Response: 120Hz - 13 kHz
  • Audio Input (with volume controls): One(1) Input (3.5mm)
  • ALD Output (with volume control): One(1) 3.5mm
  • Dimensions (W x D x H): 16” x 1.75” x 9.5”
  • Weight (overall): 3.23 lbs.
  • Regulatory Compliance: CE, CUL, UL

Redcat Access


Redcat Access
  • Description: All-in-one wireless audio base station.
  • Wireless Communication: 1.9 GHZ + RF4CE
  • Power Output: 20 W
  • Total Harmonic Distortion(THD): <1% @ 10W
  • DC Power Input: 16V/2.0A
  • Amplifier Frequency Response: 120 Hz - 13 kHz
  • Audio Input (with volume controls): One (1) Input (3.5mm)
  • ALD Output (with volume control): One (1) Output (3.5mm)
  • Tone Control: Bass and Treble.
  • Warranty: 5 years.
  • Dimensions (W x D x H): 16" x 1.75" x 9.5" (406mm x 45mm x 241mm)
  • Weight (overall): 2.9 lbs. (1.3kg)
  • Regulatory Compliance: CE, CUL, UL.

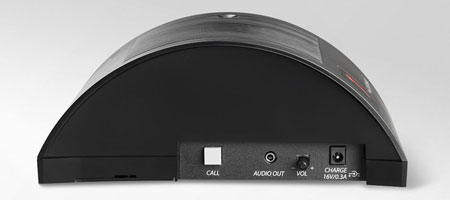

Flexcat Speaker Pod


Flexcat Speaker Pod
  • Battery Power: 6V NiMH Battery Pack
  • Battery Life: 10+ hours [fully charged]
  • Audio Output Power: 5 Watts per speaker
  • Intergrated Speaker: 2" balanced mode radiator (BMR)
  • Intergrated Microphone: Omni-directional electret
  • Audio Output: 3.5mm with volume adjust
  • Charging: Contacts for cradle charging + 16V / 0.3A DC input
  • Wireless Communication: Access Technology [1.9 GHz]
  • Wireless Range [from Redcat Access]: 200ft+ open space; 100 ft+ with walls
  • Dimensions (L x W x H): 8.5" x 5.0" x 3.5"; 21.29 x 12.7 x 8.89cm
  • Weight: 1.3 lbs 5.9 Kg

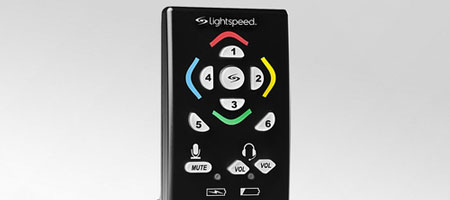

Flexcat Handheld Remote Control


Flexcat Handheld Remote Control
  • Battery Power: 2.4V NiMH battery pack
  • Wireless Communication: Access Technology [RF4CE]
  • Controls: Pod selection 1-6; All speaker selection; Microphone mute; Earbud volume
  • Dimensions (L x W x H): 4.25" x 2.0" x 1.0"
  • Weight [with battery pack]: 3.5 oz

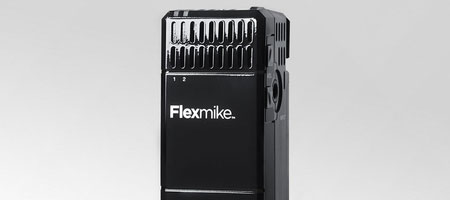

Flexmike


Flexmike
  • Decription: Pendant-style audio transceiver.
  • Earbud lanyard: Magnetic clasp with integrated earbud
  • Wireless communication: Access Technology (1.9 GHz)
  • Audio distortion: <1%
  • Intergrated microphone: Uni-directional electret
  • Earbud output: 3.5mm
  • Audio input: 3.5mm
  • Volume control +/- 6dB
  • Battery power: 2.4V NiMH battery pack
  • Charging: 2 contacts for cradle charging
  • Power: On/Off/Mute Switch
  • Device Registration: Push button for registration with Access Audio System
  • Dimensions (L x W x H): 2.9" x 1.1" x 1.0" (74 x 28 x 25mm)
  • Weight: 1.8 oz (51g)
